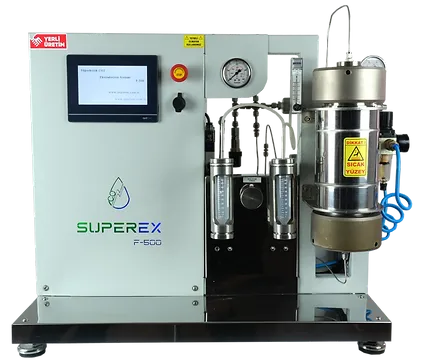

SUPEREX F-500 Impregnation Module

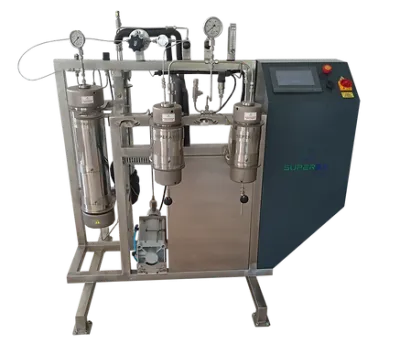

Supercritical CO2 Extractor Systems: 1 Liter extractor column Extra 0.5 liter extractor column, With CO2 liquefaction system, Working pressure up to 345 Bar, Working temperature up to 70 °C, All surfaces in contact with food are stainless steel, Smooth-honed reactor columns against microbial attachments, Special design for extraction from liquid sample, Extra liquid feed pump, Instant visible flow rate on the flowmeter, Temperature control with PID algorithm, Digital fully automatic pressure control, Easy sample loading, Independent electronic and mechanical pressure safety system https://en.superex.com.tr/projects-3

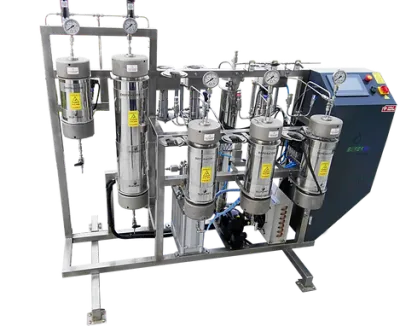

Supercritical CO2 Extractor Systems: 1 Liter extractor column, 2 separator columns, With CO2 liquefaction system, Working pressure up to 345 Bar, Working temperature up to 70 °C, Temperature control in separators, CO2 recycling system, All surfaces in contact with food are stainless steel, Smooth-honed reactor columns against microbial attachments, Temperature control with PID algorithm, Digital fully automatic pressure control, Possibility to load samples with a stainless steel basket or a cloth basket, Gas feeding or cyclone flow feature from the bottom to the separators, Trap solution to the separators; water, alcohol etc. can be added. https://en.superex.com.tr/projects-3

Supercritical CO2 Extractor Systems: 2 Liter extractor column, Extra 0.5 Liter extractor column, Working pressure up to 345 Bar, Working temperature up to 70 °C, With CO2 liquefaction system, All surfaces in contact with food are stainless steel, Smooth-honed reactor columns against microbial attachments, Special design for aroma extraction from liquid sample, Easy sample loading and cleaning process, Three separators, two of which are pressure and temperature controlled, Replaceable cyclone flow or bottom feeding apparatus in separators, Trap solution, water, alcohol, etc. to the separators. can be added. Digital Automatic back pressure regulator (BPR), With CO2 recycling system Optional CO2 recovery feature, Temperature control with PID algorithm, Gas feeding or cyclone flow feature from the bottom to the separators https://en.superex.com.tr/projects-3

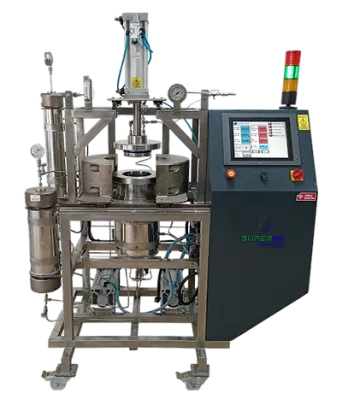

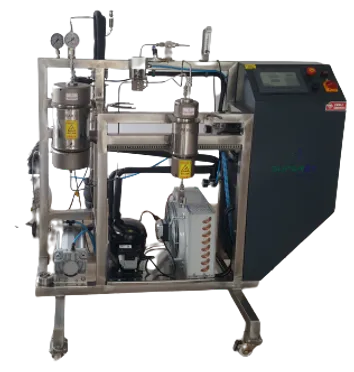

1 Liter extractor column, Large diameter extractor column designed for airgel drying, 1 separator column, Specially designed stainless steel baskets for loading sol-gel sample, Working pressure up to 138 Bar, Working temperature up to 70 °C, Liquefaction unit for stable CO2 supply, The separator column, where the alcohol placed with the sol-gel can be recovered, Temperature control with PID algorithm, Digital fully automatic pressure control, observable flow rate, Adjustable CO2 supply and discharge feature at low speeds, Adjustable pressure rise-drop curve https://en.superex.com.tr/projects-3

5 liter extractor column, Extra 0.5 liter extractor column, Large diameter extractor column designed for airgel drying, The separator column where the alcohol put in with the sol-gel can be recovered, Specially designed stainless steel baskets for loading sol-gel sample, Working pressure up to 138 Bar, Working temperature up to 70 °C, Liquefaction unit for stable CO2 supply, Full-automatic drying process (CO2 feeding and discharge, drying process is fully automatic), Remote control via PC and smartphone, Emergency warning lamp with sound and light, showing the instant status of the device, Temperature control with PID algorithm, Digital fully automatic pressure control, observable flow rate, Adjustable CO2 supply and discharge feature at low speeds, It can be used in long drying processes (24-48 hours), Adjustable pressure rise-drop curve https://en.superex.com.tr/projects-3
