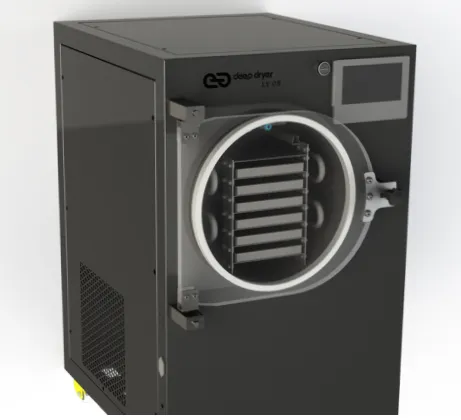

Deep Dryer ELY200 (Freeze Dryer)

https://www.deepdryer.com/en Ice Capacity:5 kg Total Tray Surface Area:0.51 m2 Fresh Food Capacity:3-5 kg Evaporator Temperature:-40°C Number of Shelves:6 Shelf Spacing:40 mm Shelf Heating Type:Electricity Shelf Temperature:0 - 80 °C Tray Quantity:6 + 6 Tray Dimensions (w*d*h):170*500*20 mm Vacuum Pump System / Value:Double Stage / 20 Pa Vacuum Pump / (Optional):Oily Type / (Dry Type) Compressor:Embrico Refrigerant Gas:R404A Energy Consumption (Average):0.9 kWh Programming:12 Steps / 10 Recipes Material:AISI 304

https://www.deepdryer.com/en Ice Capacity:10 kg Total Tray Surface Area:1.05 m2 Fresh Food Capacity:8-10 kg Evaporator Temperature:-40°C Number of Shelves:7 Shelf Spacing:40 mm Shelf Heating Type:Electricity Shelf Temperature:0 - 80 °C Tray Quantity:7 + 7 Tray Dimensions (w*d*h):200*750*20 mm Vacuum Pump System / Value:Double Stage / 20 Pa Vacuum Pump / (Optional):Oily Type / (Dry Type) Compressor:Embrico Refrigerant Gas:R404A Energy Consumption (Average):1.9 kWh Programming:12 Steps / 10 Recipes Material:AISI 304

Ice Capacity:20 kg Total Tray Surface Area:2 m2 Fresh Food Capacity:18-20 kg Evaporator Temperature:-40°C Number of Shelves:10 Shelf Spacing:40 mm Shelf Heating Type:Electricity Shelf Temperature:0 - 80 °C Tray Quantity:10 + 10 Tray Dimensions (w*d*h):250*800*20 mm Vacuum Pump System / Value:Double Stage / 20 Pa Vacuum Pump / (Optional):Oily Type / (Dry Type) Compressor:Embrico Refrigerant Gas:R404A Energy Consumption (Average):2.9 kWh Programming:12 Steps / 10 Recipes Material:AISI 304

PLY100: Ice Capacity:100 kg Total Tray Surface Area:10 m2 Fresh Food Capacity:80-110 kg Evaporator Temperature:-45°C Number of Shelves:12 Shelf Spacing:40 mm Shelf Heating Type:Liquid Shelf Temperature:-30/+100 °C Tray Quantity:12 + 12 Tray Dimensions (w*d*h):460*960’20 mm Vacuum Pump System / Value:Double Stage / 20 Pa Vacuum Pump / (Optional):Rotary Oiled Type / (Dry Type) Compressor:wish Refrigerant Gas:R404A Energy Consumption (Average):22 kWh Programming:12 Steps / 10 Recipes Material:AISI 304

ELY500: Ice Capacity:500 kg Total Tray Surface Area:50 m2 Fresh Food Capacity:470-530 kg Evaporator Temperature:-45°C Number of Shelves:40 Shelf Spacing:50 mm Shelf Heating Type:Liquid Shelf Temperature:-30/+100 °C Tray Quantity:114 + 114 Tray Dimensions (w*d*h):460*960*20 mm Vacuum Pump:Roots Tip Vacuum Value:20 Well Compressor:wish Refrigerant Gas:R404A Energy Consumption (Average):86 kWh Programming:12 Steps / 10 Recipes Material:AISI 304

ELY1000: Ice Capacity:1000 kg Total Tray Surface Area:100 m2 Fresh Food Capacity:950-1050 kg Evaporator Temperature:-45°C Number of Shelves:40 Shelf Spacing:50 mm Shelf Heating Type:Liquid Shelf Temperature:-30/+100 °C Tray Quantity:228 + 228 Tray Dimensions (w*d*h):460*960*20 mm Vacuum Pump:Roots Tip Vacuum Value:20 Well Compressor:wish Refrigerant Gas:R404A Energy Consumption (Average):155 kWh Programming:12 Steps / 10 Recipes Material:AISI 304
